API Integration Flow

📘
End-to-End Integration
This guide explains how LendFoundry's two API systems work together to support the complete lending lifecycle from application to payoff.

LendFoundry's platform consists of two integrated systems that handle different phases of the lending lifecycle. Understanding how data flows between these systems is critical for successful integration.

Complete Lending Lifecycle

%%{init: {'theme': 'base', 'themeVariables': {'background': '#ffffff', 'mainBkg': '#ffffff', 'clusterBkg': '#f9fafb', 'clusterBorder': '#2563eb', 'primaryColor': '#2563eb', 'primaryTextColor': '#ffffff', 'titleColor': '#000000', 'lineColor': '#374151'}, 'flowchart': {'padding': 25, 'nodeSpacing': 40, 'rankSpacing': 50}}}%%
flowchart TB
    subgraph PHASE1[📋 Phase 1: Application Submission APIs]
        direction LR
        A[📝 Submit] --> B[📄 Docs]
        B --> C[🔍 Verify]
        C --> D{⚖️ Decide}
        D -->|✅| E[✅ Approve]
        D -->|❌| F[❌ Decline]
    end

    subgraph PHASE2[💰 Phase 2: Active Loan Servicing APIs]
        direction LR
        G[🏦 Onboard] --> H[💵 Fund]
        H --> I[📋 Service]
        I --> J[💳 Pay]
        J --> K{📊 Status?}
        K -->|Current| L[✅ Payoff]
        K -->|Late| M[📞 Collect]
    end

    E -->|Board Loan| G

    style A fill:#2563eb,stroke:#1e40af,color:#fff
    style B fill:#2563eb,stroke:#1e40af,color:#fff
    style C fill:#2563eb,stroke:#1e40af,color:#fff
    style D fill:#6b7280,stroke:#4b5563,color:#fff
    style E fill:#059669,stroke:#047857,color:#fff
    style F fill:#dc2626,stroke:#b91c1c,color:#fff
    style G fill:#059669,stroke:#047857,color:#fff
    style H fill:#2563eb,stroke:#1e40af,color:#fff
    style I fill:#2563eb,stroke:#1e40af,color:#fff
    style J fill:#2563eb,stroke:#1e40af,color:#fff
    style K fill:#6b7280,stroke:#4b5563,color:#fff
    style L fill:#059669,stroke:#047857,color:#fff
    style M fill:#d97706,stroke:#b45309,color:#fff

Phase 1 (Application Submission APIs):

Submit — Borrower submits loan application
Docs — Upload required documents
Verify — Complete identity, income, and business verifications
Decide — Automated or manual underwriting decision
Approve/Decline — Final application decision

Phase 2 (Active Loan Servicing APIs):

Onboard — Board approved loan to servicing system
Fund — Disburse loan proceeds to borrower
Service — Ongoing loan management and accounting
Pay — Process borrower payments
Payoff/Collect — Handle loan completion or collections

Phase 1: Application Submission & Approval

Application Submission APIs handle the complete loan origination process from application intake through funding approval.

Key Endpoints

Step	Endpoint	Purpose
Submit	`POST /borrower-application-intake`	Create new application
Documents	`POST /upload-document`	Upload supporting documents
Verify	`POST /add-stipulations`	Add verification requirements
Credit	`POST /get-credit-data`	Pull credit report
Status	`POST /get-borrower-application-by-uid`	Check application status
Tasks	`POST /create-task`	Create underwriting tasks

Authentication

Authorization: YOUR_API_KEY

⚠️
No Bearer Prefix
Application Submission APIs use API Key authentication without the Bearer prefix.

Example: Submit Application

curl -X POST "https://loc.demo.kendra.lendfoundry.com/v1/darbaan/back-office/rest/api/borrower-application-intake" \
  -H "Authorization: YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "borrower_name": "John Doe",
    "email": "[email protected]",
    "phone": "(555) 123-4567",
    "loan_amount": 50000,
    "loan_purpose": "Business Expansion"
  }'

const submitApplication = async (applicationData, apiKey) => {
  const response = await fetch(
    'https://loc.demo.kendra.lendfoundry.com/v1/darbaan/back-office/rest/api/borrower-application-intake',
    {
      method: 'POST',
      headers: {
        'Authorization': apiKey,
        'Content-Type': 'application/json'
      },
      body: JSON.stringify(applicationData)
    }
  );

  return await response.json();
};

const result = await submitApplication({
  borrower_name: 'John Doe',
  email: '[email protected]',
  phone: '(555) 123-4567',
  loan_amount: 50000,
  loan_purpose: 'Business Expansion'
}, process.env.LOS_API_KEY);

import requests

def submit_application(application_data, api_key):
    """Submit new loan application."""
    url = "https://loc.demo.kendra.lendfoundry.com/v1/darbaan/back-office/rest/api/borrower-application-intake"
    headers = {
        "Authorization": api_key,
        "Content-Type": "application/json"
    }

    response = requests.post(url, json=application_data, headers=headers)
    response.raise_for_status()
    return response.json()

result = submit_application({
    "borrower_name": "John Doe",
    "email": "[email protected]",
    "phone": "(555) 123-4567",
    "loan_amount": 50000,
    "loan_purpose": "Business Expansion"
}, os.getenv('LOS_API_KEY'))

public String submitApplication(String applicationJson, String apiKey) throws Exception {
    HttpClient client = HttpClient.newHttpClient();
    HttpRequest request = HttpRequest.newBuilder()
        .uri(URI.create("https://loc.demo.kendra.lendfoundry.com/v1/darbaan/back-office/rest/api/borrower-application-intake"))
        .header("Authorization", apiKey)
        .header("Content-Type", "application/json")
        .POST(HttpRequest.BodyPublishers.ofString(applicationJson))
        .build();

    HttpResponse<String> response = client.send(request,
        HttpResponse.BodyHandlers.ofString());
    return response.body();
}

Application Status Flow

%%{init: {'theme': 'base', 'themeVariables': {'background': '#ffffff', 'mainBkg': '#ffffff', 'clusterBkg': '#f9fafb', 'clusterBorder': '#2563eb', 'primaryColor': '#2563eb', 'primaryTextColor': '#ffffff', 'titleColor': '#000000', 'lineColor': '#374151'}, 'flowchart': {'padding': 25, 'nodeSpacing': 45, 'rankSpacing': 50}}}%%
flowchart LR
    subgraph STATUS[📋 Application Status Flow]
        A[Draft] --> B[Submitted]
        B --> C[Under Review]
        C --> D[Approved]
        C --> E[Declined]
        D --> F[Funded]
    end

    style A fill:#6b7280,stroke:#4b5563,color:#fff
    style B fill:#2563eb,stroke:#1e40af,color:#fff
    style C fill:#d97706,stroke:#b45309,color:#fff
    style D fill:#059669,stroke:#047857,color:#fff
    style E fill:#dc2626,stroke:#b91c1c,color:#fff
    style F fill:#059669,stroke:#047857,color:#fff

The Handoff: LOS to LMS

When an application is approved, it must be "boarded" to the Active Loan Servicing system. This is the critical transition point between origination and servicing.

Boarding Endpoint

POST /application/submit/business/onboard

Full URL:

https://api.demo.lms.lendfoundry.com/v1/lms-application-processor/application/submit/business/onboard

Data Transferred

Category	Data Elements
Borrower Info	Name, SSN/EIN, contact details, address
Loan Terms	Amount, rate, term, purpose
Collateral	Type, value, description
Documents	Document references and verification status

Boarding Example

curl -X POST "https://api.demo.lms.lendfoundry.com/v1/lms-application-processor/application/submit/business/onboard" \
  -H "Authorization: Bearer YOUR_JWT_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "application_uid": "0x1234567890abcdef",
    "application_number": "APP-2025-001234",
    "loan_amount": 50000,
    "interest_rate": 5.5,
    "loan_term": 60,
    "loan_start_date": "2025-12-20"
  }'

const boardLoan = async (boardingData, jwtToken) => {
  const response = await fetch(
    'https://api.demo.lms.lendfoundry.com/v1/lms-application-processor/application/submit/business/onboard',
    {
      method: 'POST',
      headers: {
        'Authorization': `Bearer ${jwtToken}`,
        'Content-Type': 'application/json'
      },
      body: JSON.stringify(boardingData)
    }
  );

  return await response.json();
};

const result = await boardLoan({
  application_uid: '0x1234567890abcdef',
  application_number: 'APP-2025-001234',
  loan_amount: 50000,
  interest_rate: 5.5,
  loan_term: 60,
  loan_start_date: '2025-12-20'
}, jwtToken);

import requests

def board_loan(boarding_data, jwt_token):
    """Board approved loan to LMS."""
    url = "https://api.demo.lms.lendfoundry.com/v1/lms-application-processor/application/submit/business/onboard"
    headers = {
        "Authorization": f"Bearer {jwt_token}",
        "Content-Type": "application/json"
    }

    response = requests.post(url, json=boarding_data, headers=headers)
    response.raise_for_status()
    return response.json()

result = board_loan({
    "application_uid": "0x1234567890abcdef",
    "application_number": "APP-2025-001234",
    "loan_amount": 50000,
    "interest_rate": 5.5,
    "loan_term": 60,
    "loan_start_date": "2025-12-20"
}, jwt_token)

public String boardLoan(String boardingJson, String jwtToken) throws Exception {
    HttpClient client = HttpClient.newHttpClient();
    HttpRequest request = HttpRequest.newBuilder()
        .uri(URI.create("https://api.demo.lms.lendfoundry.com/v1/lms-application-processor/application/submit/business/onboard"))
        .header("Authorization", "Bearer " + jwtToken)
        .header("Content-Type", "application/json")
        .POST(HttpRequest.BodyPublishers.ofString(boardingJson))
        .build();

    HttpResponse<String> response = client.send(request,
        HttpResponse.BodyHandlers.ofString());
    return response.body();
}

Boarding Response

{
  "loan_number": "LN-2025-001234",
  "status": "boarded",
  "message": "Loan successfully boarded to LMS",
  "loan_id": "12345",
  "boarded_at": "2025-12-15T10:30:00Z",
  "application_uid": "0x1234567890abcdef",
  "application_number": "APP-2025-001234"
}

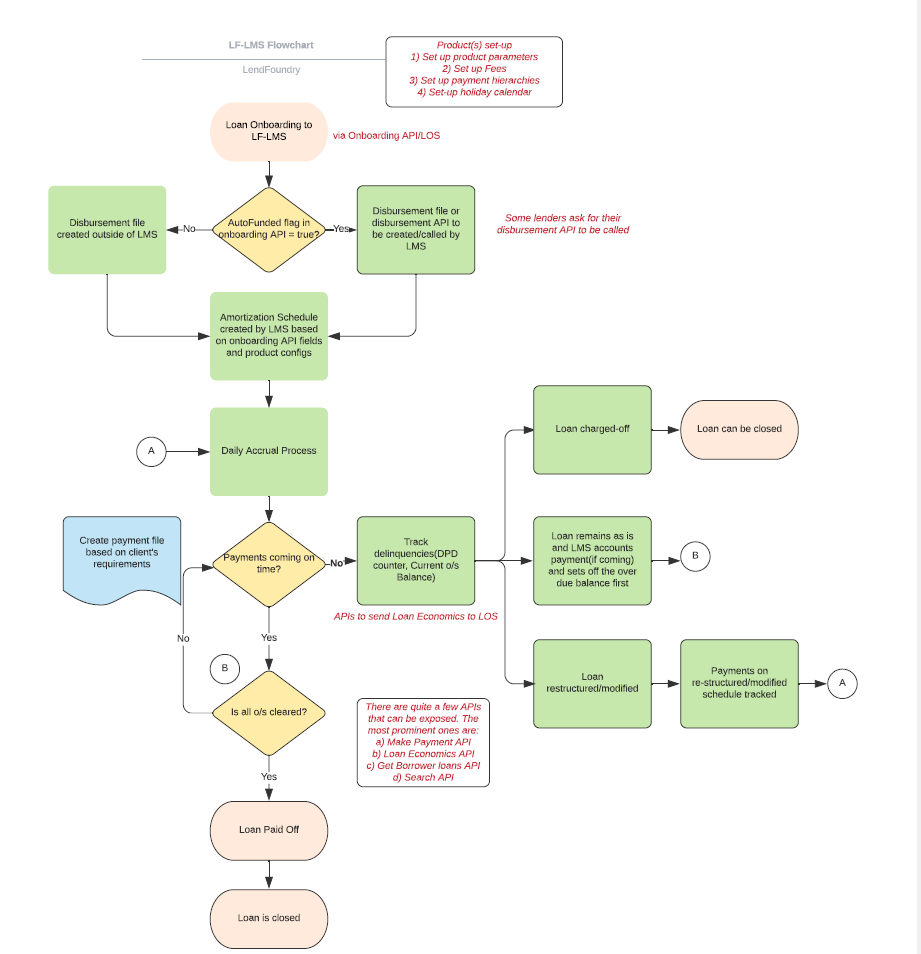

Phase 2: Active Loan Servicing

Active Loan Servicing APIs handle all post-origination activities including payment processing, accounting, and collections.

Microservices Architecture

%%{init: {'theme': 'base', 'themeVariables': {'background': '#ffffff', 'mainBkg': '#ffffff', 'clusterBkg': '#f9fafb', 'clusterBorder': '#2563eb', 'primaryColor': '#2563eb', 'primaryTextColor': '#ffffff', 'titleColor': '#000000', 'lineColor': '#374151'}, 'flowchart': {'padding': 25, 'nodeSpacing': 40, 'rankSpacing': 50}}}%%
flowchart TB
    subgraph LMS[💰 Active Loan Servicing Microservices]
        direction TB
        A[🏦 Loan Management] --> B[💳 Payment Processor]
        A --> C[📊 Loan Accounting]
        B --> C
        A --> D[👤 Business Applicant]
        A --> E[🔍 Loan Filters]
        A --> F[💵 DrawDown Processor]
        B --> G[📞 Call Management]
    end

    style A fill:#2563eb,stroke:#1e40af,color:#fff
    style B fill:#2563eb,stroke:#1e40af,color:#fff
    style C fill:#2563eb,stroke:#1e40af,color:#fff
    style D fill:#2563eb,stroke:#1e40af,color:#fff
    style E fill:#2563eb,stroke:#1e40af,color:#fff
    style F fill:#2563eb,stroke:#1e40af,color:#fff
    style G fill:#d97706,stroke:#b45309,color:#fff

Key Endpoints by Microservice

Microservice	Endpoint	Purpose
Loan Management	`POST /insert`	Create new loan record
Loan Management	`POST /amortize`	Generate amortization schedule
Loan Management	`GET /search/{loanNumber}/details`	Get loan details
Payment Processor	`POST /payment`	Process payment
Payment Processor	`POST /schedule-payment`	Schedule future payment
Loan Accounting	`POST /transaction`	Record transaction
Loan Accounting	`GET /balance/{loanNumber}`	Get current balance
DrawDown Processor	`POST /process-drawdown`	Process LOC draw
Call Management	`POST /log-call`	Log collection call
Loan Filters	`POST /filter-loans`	Search/filter loans

Authentication

Authorization: Bearer YOUR_JWT_TOKEN

⚠️
Bearer Prefix Required
Active Loan Servicing APIs require the Bearer prefix before the JWT token.

Loan Status Flow

%%{init: {'theme': 'base', 'themeVariables': {'background': '#ffffff', 'mainBkg': '#ffffff', 'clusterBkg': '#f9fafb', 'clusterBorder': '#2563eb', 'primaryColor': '#2563eb', 'primaryTextColor': '#ffffff', 'titleColor': '#000000', 'lineColor': '#374151'}, 'flowchart': {'padding': 25, 'nodeSpacing': 45, 'rankSpacing': 50}}}%%
flowchart LR
    subgraph LOAN[💰 Loan Status Flow]
        A[Boarding] --> B[Active]
        B --> C[Current]
        C --> D[Paid Off]
        B --> E[Delinquent]
        E --> F[Collections]
        F --> G[Charged Off]
        E --> C
    end

    style A fill:#6b7280,stroke:#4b5563,color:#fff
    style B fill:#2563eb,stroke:#1e40af,color:#fff
    style C fill:#059669,stroke:#047857,color:#fff
    style D fill:#059669,stroke:#047857,color:#fff
    style E fill:#d97706,stroke:#b45309,color:#fff
    style F fill:#dc2626,stroke:#b91c1c,color:#fff
    style G fill:#374151,stroke:#1f2937,color:#fff

Integration Best Practices

✅ DO

Practice	Reason
Verify prerequisites before boarding	Prevents boarding failures
Implement webhook listeners	Real-time status updates
Use idempotency keys	Prevent duplicate operations
Validate data before submission	Reduce validation errors
Log all API interactions	Audit trail and debugging

❌ DON'T

Anti-Pattern	Risk
Skip status verification	Operations on invalid states
Ignore error responses	Silent failures
Hardcode credentials	Security exposure
Poll excessively	Rate limiting

Data Linking

Applications and loans are linked through unique identifiers:

%%{init: {'theme': 'base', 'themeVariables': {'background': '#ffffff', 'mainBkg': '#ffffff', 'clusterBkg': '#f9fafb', 'clusterBorder': '#2563eb', 'primaryColor': '#2563eb', 'primaryTextColor': '#ffffff', 'titleColor': '#000000', 'lineColor': '#374151'}, 'flowchart': {'padding': 25, 'nodeSpacing': 60, 'rankSpacing': 50}}}%%
flowchart LR
    subgraph LINK[🔗 Data Linking]
        A[📋 APP-2025-001] -.->|Links To| B[💰 LN-2025-001]
    end

    style A fill:#2563eb,stroke:#1e40af,color:#fff
    style B fill:#059669,stroke:#047857,color:#fff

LOS Field	LMS Field	Purpose
`application_uid`	`application_uid`	Unique application identifier
`application_number`	`application_number`	Human-readable application ID
—	`loan_number`	Unique loan identifier (created at boarding)

Key Takeaways

Concept	Details
Two Systems	LOS for origination, LMS for servicing
Different Auth	LOS uses API Key, LMS uses Bearer JWT
Handoff Point	`POST /application/submit/business/onboard`
Data Linking	`application_uid` links LOS and LMS records
Microservices	LMS has 7+ microservices for different functions

Next Steps

Resource	Description
Workflows	Detailed workflow guides
Error Codes	Handle errors gracefully
Rate Limiting	Understand rate limits

✅
Ready to Build?
Explore the Workflow Guides for step-by-step implementation examples.
